GT3582R Super core BA BF XR6 Turbo F6 Typhoon Aus Turbo XR6T Ball bearing Turbo

GT3582R Super core BA BF XR6 Turbo F6 Typhoon Aus Turbo XR6T Ball bearing Turbo







100% Aussie seller, Aussie built here in Australia!

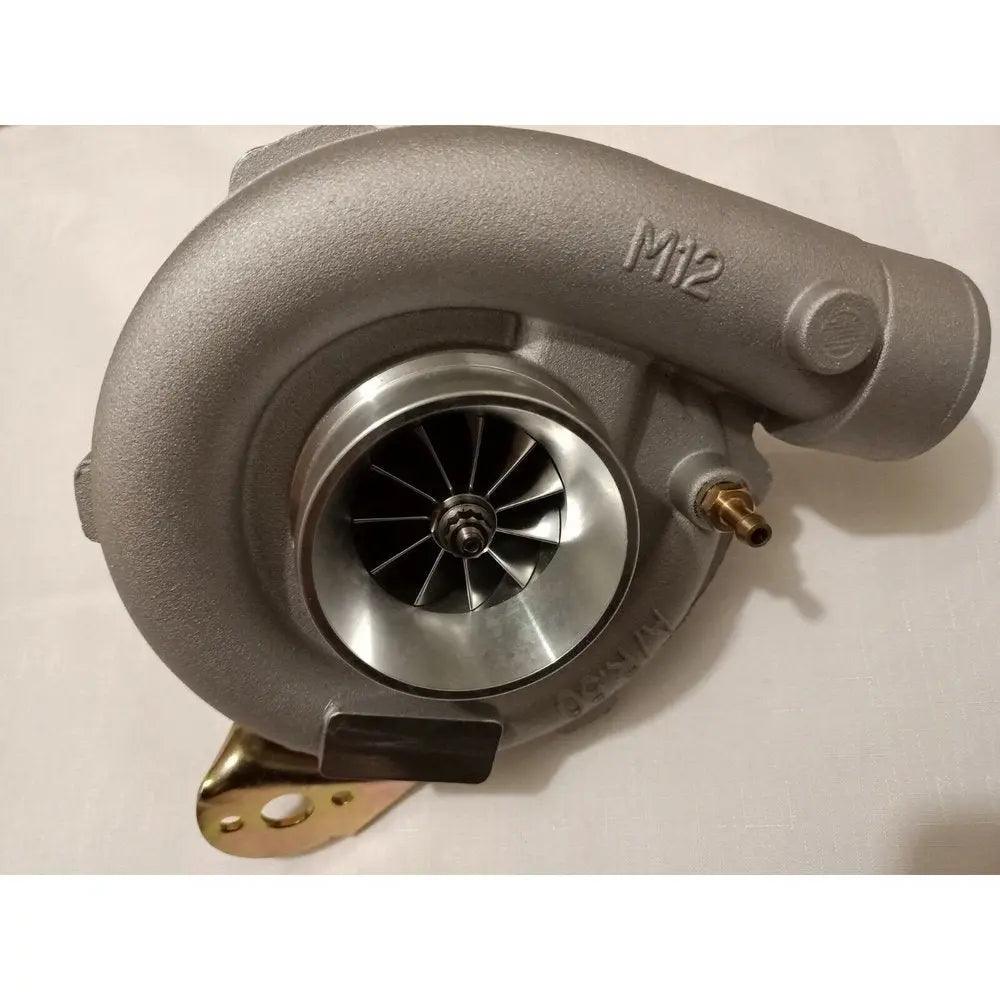

This listing is for a GT3582R supercore which includes a brand new OEM spec compressor housing, brackets & the CHRA installed.

The turbine housing is not included in the sale.

contents

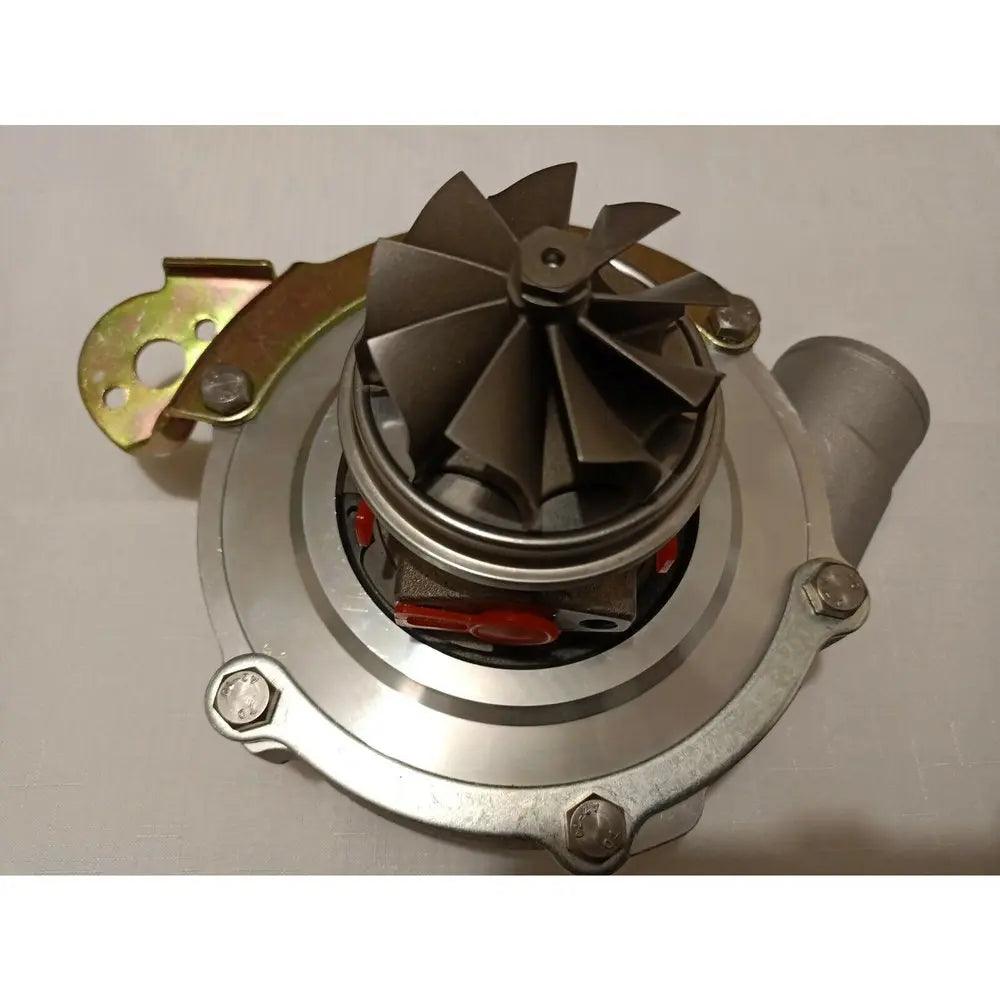

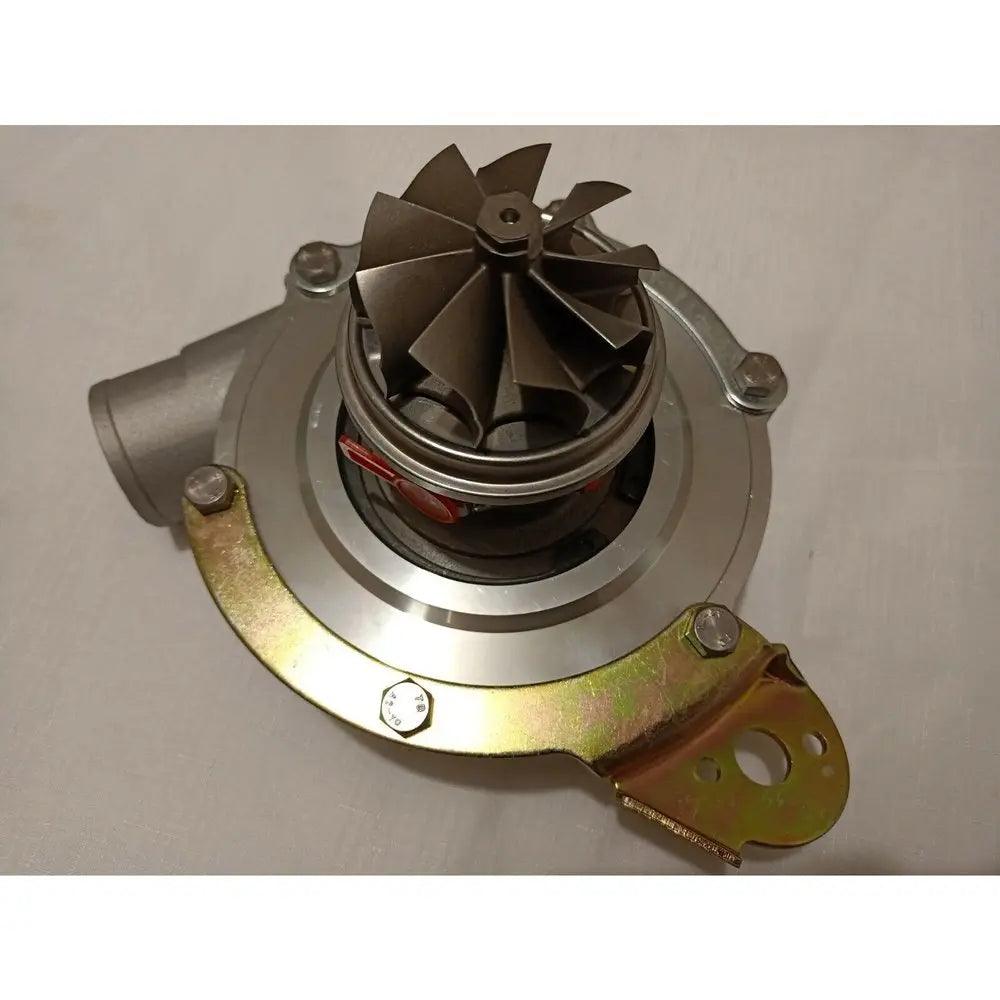

GT3582R supercore

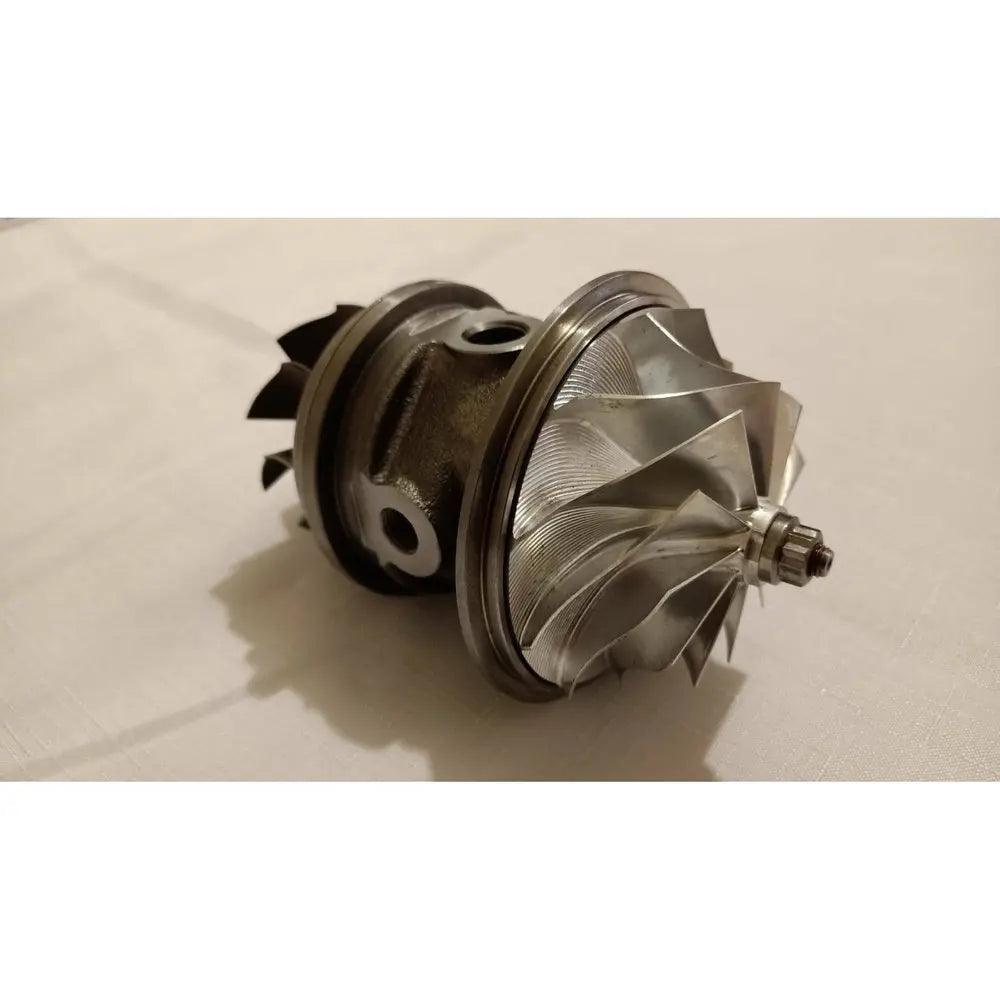

-Complete ball bearing GT3582R CHRA

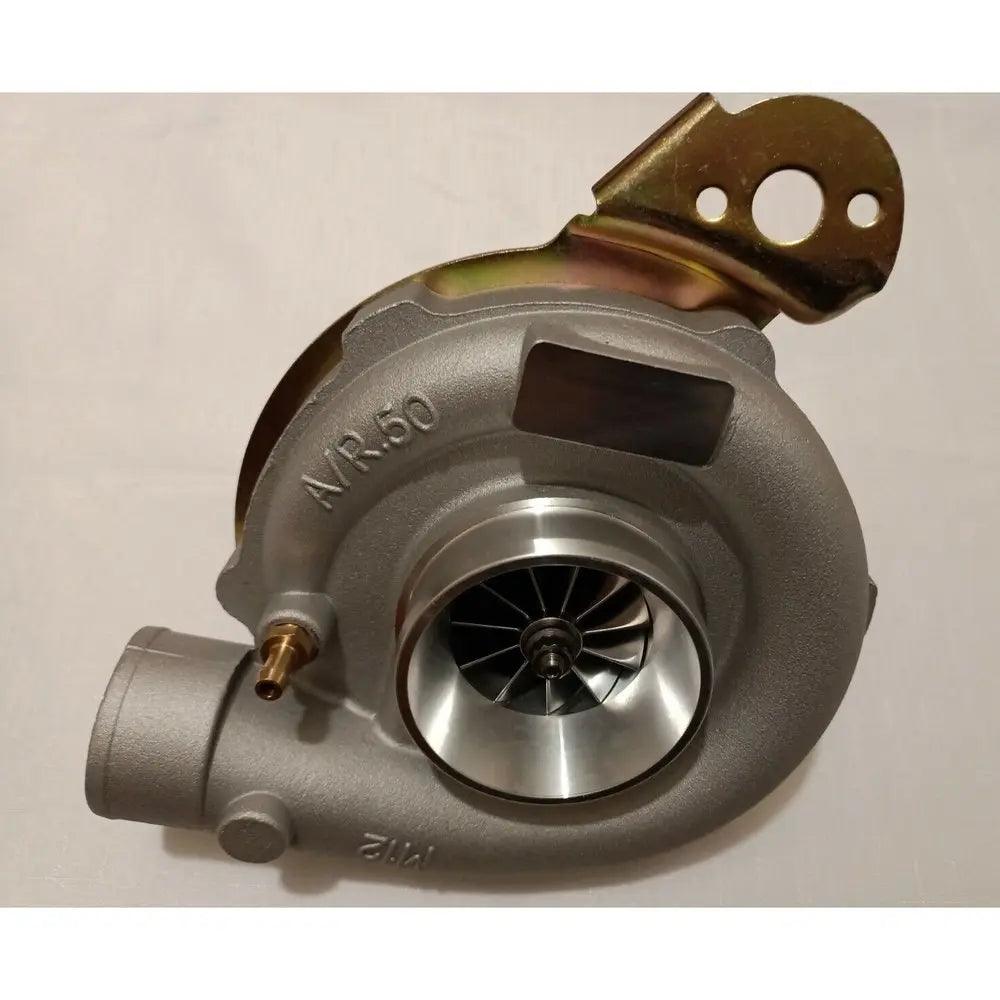

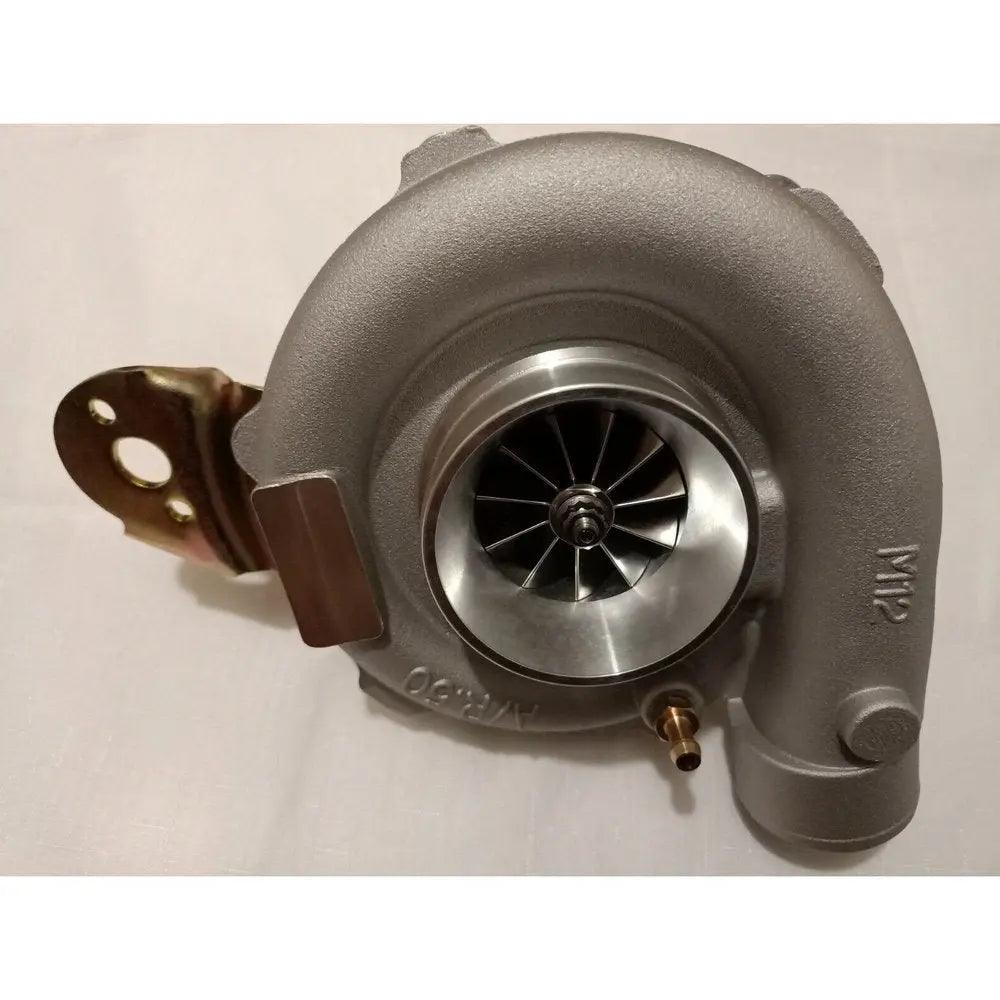

-Aftermarket compressor housing

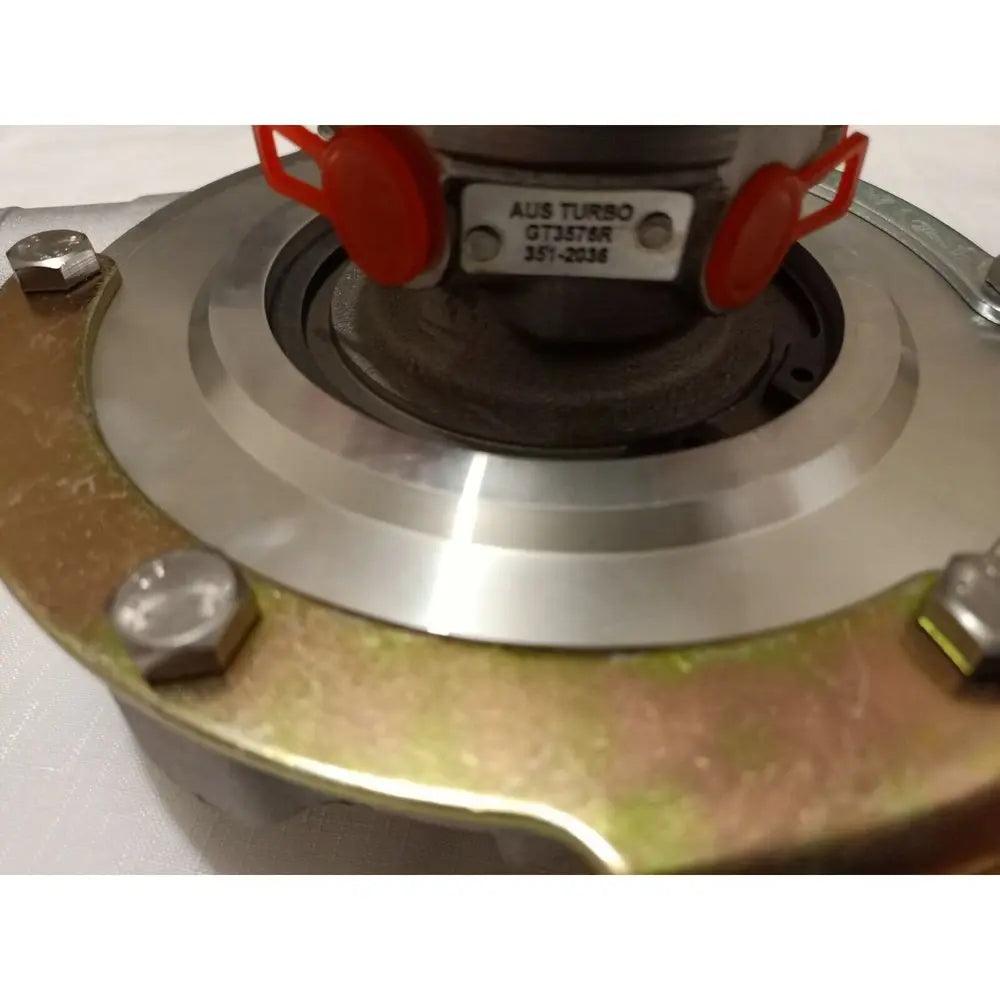

-oem brackets

-circlip

Personal testing & customer feedback

(Fast spool, aggressive boost, some described as savage)

Very good spool time from lower RPM range & very aggressive mid range to higher rpm performance)

This is my personal favourite and is suitable for standard or modified barras.

Brand New Aus Turbo Performance CHRA suit Garrett Turbo GT3582R. (Ball bearing turbo)

This is a straight bolt on upgraded stage 3 supercore that requires no modifications to your original turbine housing.

No you won't log check engine lights or mess up your standard tune providing you run standard boost, standard boost actuator.

This is the best bang for your buck, we have tested these and they make big difference in performance when compared to the standard Garrett CHRA.

What you will notice, faster spool, nicer sound on boost, faster & harder boost guaranteed, amazing increase in performance!

The bearing housing is a brand new upgraded aftermarket type, it's stronger then the original & the oil feed holes are slightly larger for better oil flow & less chance of oil starvation.

This is an upgraded CHRA for the Garrett GT3582R turbo with 11 blade billet compressor wheel & 9 or 10 impeller high flow turbine.

You have a choice of brass cages or peak cages.

Ceramic ball bearings are used for more durability & slightly faster spool

(Proven to be better then steel, Garrett run Ceramic in their later model high end GTX Turbos), built to last!

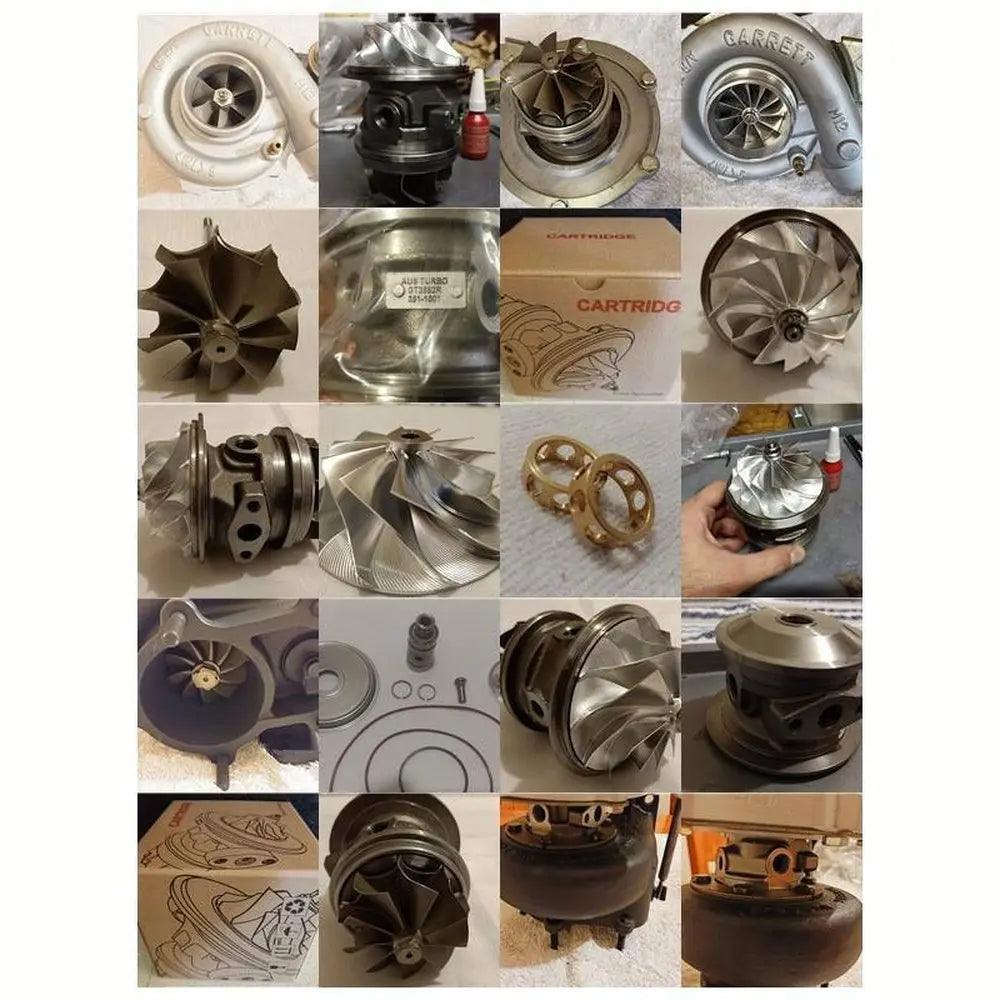

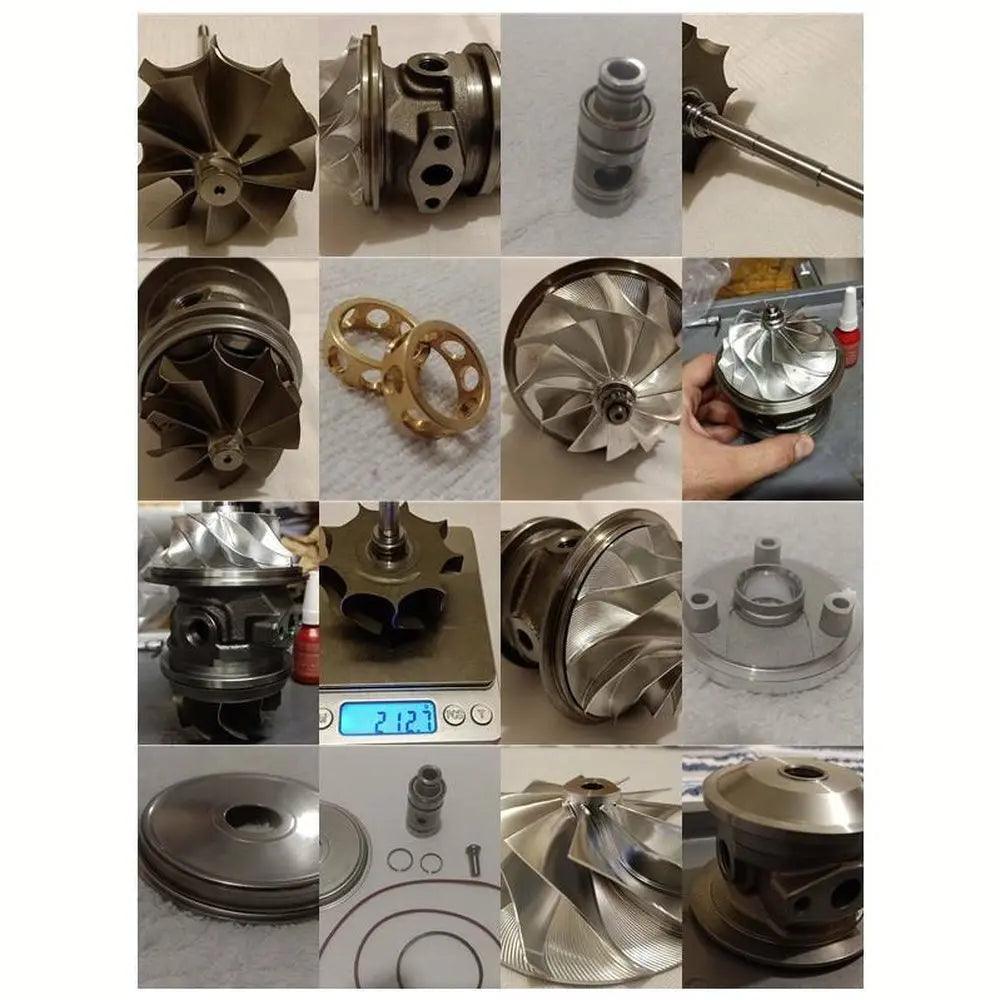

Aus Turbo CHRA parts fitted:

-New high quality Ceramic ball bearing cartridge with

-brass cages (or Peek).

-New rings (Upgraded Stepped back on turbine side)

-New seals

-New heat shield

-New back seal plate

-New 11 blade billet compressor wheel.

-New 9 or 10 blade performance high flow turbine wheel

-New Upgraded High flow oil restrictor

-New upgraded core bearing housing

-VSR balanced

This Aus Turbo CHRA Feels nice & firm like a brand new Garrett turbocharger is meant to feel, spins nice & free.

Professionally built, All work carried out by qualified Australian mechanic with well over 20 years experience. 100% Positive feedback.

These AUS Turbo CHRA's are all hand built in Australia & only the highest quality parts have been used.

Please note: I have seen a number of XR6 Turbo failures due to heat as the factory garrett turbos run plastic bearing cages and steel balls, most I have seen are melted or broken on the hot side, the brass bearing cages alone are an upgrade and the ceramic balls take a lot more heat.

In some other cases failures are due to lack of lubrication, lack of oil changes which causes sludge build up.

Factory oil feed line must be replaced, it's recommended to fit a braided type with a filtration device.

There is a little filter/strainer on the oil pressure switch side of feed line that needs to be removed or replaced also.

I reserve the right to end listing at anytime without notice as I have it advertised elsewhere including gumtree & Facebook.

Any questions I'll be more then happy to answer. Thanks for looking

6 Months limited warranty from date of sale.

Terms and conditions of warranty.

Vehicle must be serviced every 5000km to 10,000km

or 6 months. proof of service will need to be provided.

A good quality full synthetic oil must be used such as

Penrite 5w-40.

Warranty does not cover abuse, oil starvation or

sludge build up in engine!

You must check that there is adequate oil supply

& a new braided oil line with a filteration device must

be fitted, no exceptions!

Replacement part warranty only.

Warranty will not cover labour or

any other cost incurred.

The CHRA will need to be sent back to

us for inspection before accepting liability

for warranty.

Free local pick up in western sydney or can post Australia wide.

Please note, I reserve the right to end listing at anytime without notice as I have this listed on gummtree & Facebook also

International buyers please send a message before purchasing to confirm delivery cost.

Thank you.
